Autel IA700 Modular ADAS Calibration System – Australia
The Autel IA700 is a state-of-the-art and versatile wheel alignment pre-check and ADAS calibration system engineered for both in-shop and mobile applications – move from bay to bay and shop to shop.
It features optical positioning that reduces target setup by 6X versus mechanical measurement, unlevel floor compensation that eliminates failed calibrations due to uneven surfaces, and integrated alignment pre-check in a single system and workflow.
View All IA700 SYSTEM & TARGET PACKAGES
A STREAMLINED SINGLE SYSTEMt & WORKFLOW
Modern vehicle software, sensors, components, and modules interact over multiple communication networks, requiring an advanced diagnostic tool to correct faults before advancing to any structural analysis and safety system calibrations.Powered by an Autel MaxiSYS tablet, the IA700 delivers the industry's most comprehensive, key-to-key vehicle servicing available.
INTEGRATED WHEEL ALIGNMENT PRE-CHECK
ENSURE YOUR WORKFLOW FOLLOWS OEM-SOURCED PROCEDURES
Proper alignment is crucial for ADAS-equipped vehicles. These safety systems depend on an accurate thrust angle and alignment with the road to perform as designed, and misalignment can result in inaccurate and potentially dangerous ADAS calibrations.
IA700 Alignment Pre-check optically determines a vehicle's current alignment specifications and compares them with the manufacturer's allowed tolerances. If within OE-spec, the technician can proceed confidently to ADAS calibration.
Included in the IA700 documentation is an Alignment Pre-Check report that illustrates that the vehicle was tested to ensure it was within OE alignment tolerances before ADAS calibration.
FULLY OPTICAL TARGET PLACEMENT
6X Faster Setup
Accurate placement of a camera pattern, target, or radar calibrator is essential for successful ADAS calibration. Traditional mechanical methods are slow and tedious, but with fully optical positioning, setup time is reduced by up to six times.

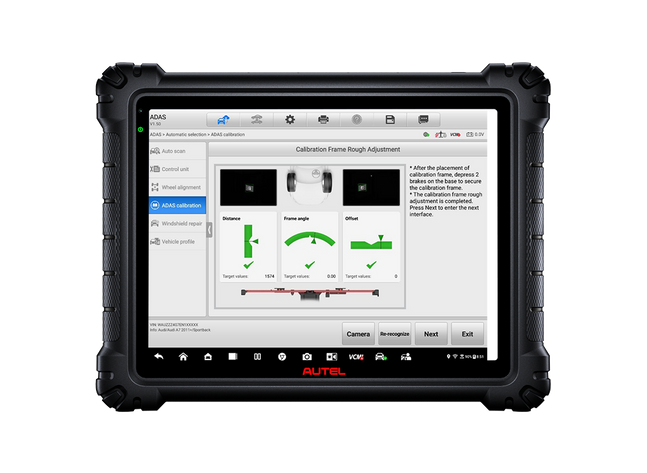

The IA700’s frame-embedded HD cameras, precision tire clamps, and MaxiSYS-driven software automatically detect targets and calculate frame angle, distance, and offset with unmatched accuracy.
Step-by-step onscreen guidance makes adjustments simple. Once each parameter is aligned, green check marks confirm accuracy — and the vehicle is instantly ready for calibration.
AUTOMATIC HEIGHT ADJUSTMENT WITH ROBOTIC PRECISION

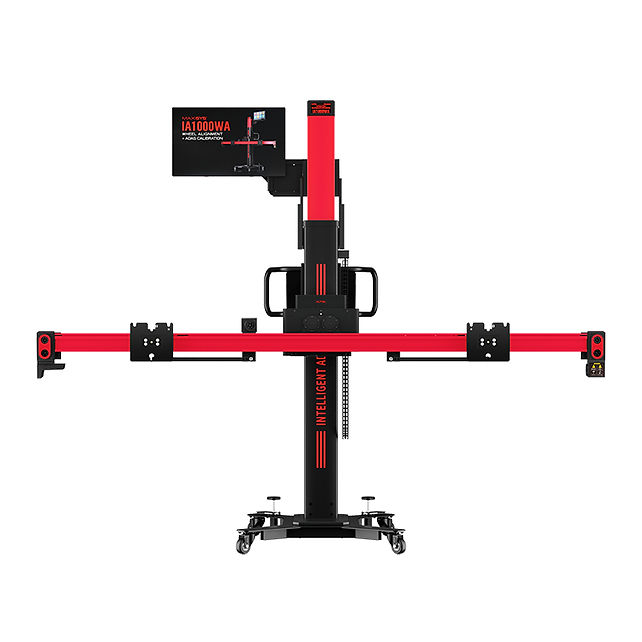

The removable crossbar, equipped with six in-frame HD tracking cameras, continuously monitors tire clamp target positions. Its robotic system automatically adjusts to the correct vertical calibration height, ensuring industry-leading accuracy of 0.02°.
UNLEVEL FLOOR COMPENSATION
ELIMINATE FAILED CALIBRATIONS DUE TO UNEVEN SURFACES
Level flooring is one of the critical environmental factors required to achieve successful ADAS calibration. An uneven floor, perhaps due to shop drainage or an unfamiliar mobile site, can result in calibration failure or an unsafe calibration.
IA700 Unlevel Floor Compensation allows for the selection of any type of surface including level floor, unlevel floor, or on a rack, and delivers successful calibration regardless of the flooring status.
QUICK DISASSEMBLY
The IA700 easily disassembles into 5 primary parts in less than 90 seconds for easy transport.
COVER & STORE
Minimize the in-shop footprint with detachable crossbars and protect your investment with the included dust cover.
SCALABLE & MODULAR ADAS PLATFORM
INDUSTRY-LEADING VEHIVLE & SYSTEM COVERAGE
Autel leads the industry in vehicle brand and ADAS technology coverage. With the IA700, shops can calibrate every camera, lidar, and radar-based system on virtually every vehicle that enters their bay, while providing both dynamic and static calibrations.
Scalable & Modular ADAS Platform
Industry-leading Vehicle & System Coverage
Autel leads the industry in vehicle brand and ADAS technology coverage. With the IA700, shops can calibrate every camera, lidar, and radar-based system on virtually every vehicle that enters their bay,
while providing both dynamic and static calibrations.
EXPANSIVE STATIC & DYNAMIC
ADAS SYSTEM COVERAGE
Autel offers comprehensive static calibration packages with Lane Departure Warning targets and patterns for Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo ADAS-equipped vehicles, and Rear Collison Warning and Around View Monitoring mats for numerous vehicle brands including Nissan, Mercedes-Benz, Volkswagen, and Honda, General Motors, Toyota, and Mitsubishi. Available packages also include radar, lidar, and night vision calibrators.
STEP BY STEP INSTRUCTIONS WITH VISUAL GUIDANCE
INCREASE SHOP EFFICIENCY AND REDUCE THE TRAINING LEARNING CURVE
The Autel MaxiSYS tablet displays easy-to-follow step by step instructions and graphical illustrations to ensure every calibration is performed safely and accurately to OE specs. From pre-calibration vehicle and environment conditioning through positioning, calibration, and documentation, the Autel workflow ensures efficient and reimbursable calibrations every time.
COMPREHENSIVE
DOCUMENTATION& REPORTING
VALIDATED TARGET POSITIONING
No company offers more comprehensive and insurer-ready documentation than Autel. A Pre-scan identifies existing faults and all safety or convenience systems on the vehicle. The Post-scan includes a detailed report that ensures vehicle owners, sublets, and insurance companies that the faults were repaired, and all OE-required calibrations were performed to OE specifications, requirements, and guidelines.
AUTEL GUIDED ADAS AND REMOTE EXPERT
LATE MODEL SOFTWARE & CALIBRATION COVERAGE
Autel prides itself on having the fastest OE-released coverage to market in the industry. Still, we depend on vehicle manufacturers to share the latest model diagnostic, servicing, and calibration software and specifications, which creates a lag time for the newest vehicle coverage to reach our tablets. In response to this and to provide a comprehensive, all-in-one solution, we developed the Autel Guided ADAS application.
Autel ADAS users can utilize their MaxiSYS tablet, frame, targets, calibrators, and expedited setup, and a local laptop with an OE subscription or OE tools to calibrate the safety or convenience system on late model vehicles.
If OE subscriptions or OE tools are unavailable, the Autel Remote Expert platform enables access to experienced technicians with OE tools or subscriptions to complete the calibration. Remote Experts are also available for modular flashing, new ECU programming, and OE tasks that are currently not supported by Autel software.
